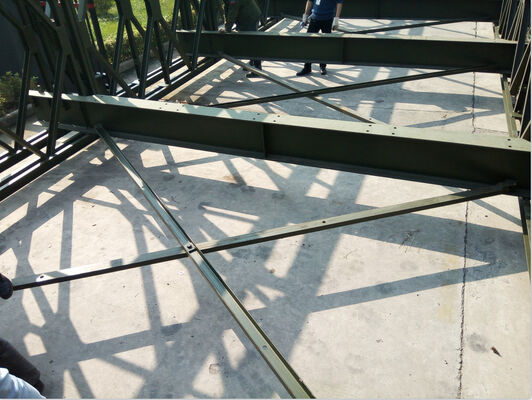

bailey bridge suppliers
| MOQ: | 30 tons or less |
| Price: | US $ 1,000 - 1,500 / Ton |
| Standard Packaging: | BULK |
| Delivery Period: | 15 working days after prepayment |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 10000 tons per month |
bailey bridge
,military steel bridge
,two/double lane bailey bridge/compact steel bridge
Quick Details
- Standard:ASTM, GB
- Grade:steel
- Dimensions:Q345
- Place of Origin:Jiangsu, China (Mainland)
- Brand Name:zhongye
- Type:Heavy
- Application:Steel Structure Bridge
Packaging & Delivery
| Packaging Details: | by container |
|---|---|
| Delivery Detail: | according to actual needs and after prepayments |
Specifications
1.military structed
2.conveniently-transported
3.rapid erection/easy assembled/fast installed
4 huge load
5.Long service life
6.strong corrosin resistance
Steel bridge is similarly like compact 100,compact 200 International bridge.
it is assembled by each 3m panel, and invented by Donald Bailey.
The compact 100 panel bridge can be easily dissembled and rapidly erected. The whole bridge is made by high-tensile strength steel. Main beam is light weight panels and the panels are connected by panel connection pins.
It is easy to assemble or disassemble and transport. It can also be assembled into different forms of panel bridges according to their span length and transportation requirement. So, it has been widely applied as emergency transportation, temprary or permanent bridge.
Its suitable load design is such like HS-15, HS-20, HS-25 and pedrail-50 etc. equivalent.
The compact 200 panel bridge is similar to the compact 100 panel bridge from their appearance. The only difference is the panel height of 2.134m. So, its performance has been highly improved. in addition, there are two-lane structures available, with width of 7.56m, which broden its usage.
| Span Construction-Load Table --- Extra Single Lane (W=4200mm) | Span Construction-Load Table ---Double Lane (W=7350mm) | |||||||
| SPAN-ft | HS-15 | HS-20 | HS-25 | SPAN-ft | HS-15 | HS-20 | HS-25 | |
| 30 | SS | SS | SS | 30 | SS | SS | SS | |
| 40 | SS | SS | SS | 40 | SS | SS | SS | |
| 50 | SS | SS | SS | 50 | SS | SS | SSR | |
| 60 | SS | SS | SS | 60 | SS | SSR | SSR | |
| 70 | SS | SS | SSR | 70 | SSR | SSR | DS | |
| 80 | SS | SSR | SSR | 80 | SSR | DS | DSR1 | |
| 90 | SSR | SSR | SSR | 90 | SSRH | DSR1 | DSR2H | |
| 100 | SSR | SSR | SSR | 100 | DSR1 | DSR2H | TSR2 | |
| 110 | SSR | SSR | DS | 110 | DSR1 | DSR2 | QS | |
| 120 | SSR | DS | DSR1 | 120 | TS | DSR2H | TSR2 | |
| 130 | DS | DSR1 | DSR2H | 130 | DSR2H | TSR2 | TSR3 | |
| 140 | DSR1 | DSR2H | DSR3H | 140 | TSR2 | TSR3 | TSR3H | |
| 150 | TSTSR2 | DSR2H | DSR4H | 150 | TSR3H | TSR3H | QSR4 | |
| 160 | DSR2H | DSR2H | TSR2 | 160 | QSR4 | QSR4 | QSR4 | |
| 170 | TSR2 | TSR2 | TSR3 | 170 | QSR4 | QSR4 | ||
| 180 | TSR2 | TSR3 | TSR3H | 180 | QSR4 | |||
| 190 | TSR3H | TSR3 | QSR4 | |||||
| 200 | QSR4 | TSR3QSR3 | QSR4 | |||||
|
Remark: 1.SS shows one range one tier; DS shows two ranges one tier; TS shows three ranges one tier; DD shows two range two tiers etc. 2.If R follows SS, DS, DD, etc, means reinforce type,and R1 means only one range reinforced, R2 means two ranges reinforced |
||||||||
