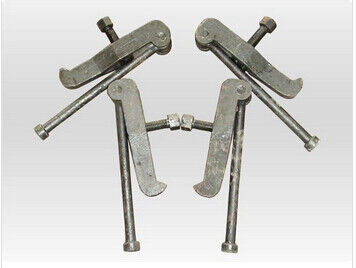

bailey bridge Transom clamp
| MOQ: | 1 Unit/Units |
| Price: | US $ 600 - 1,600 / Unit |
| Standard Packaging: | 40ft container |
| Delivery Period: | 15 working days after prepayment |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 2500 Ton/Tons per Year |
Detail Information
Place of Origin
Jiangsu, China (Mainland)
Brand Name
zhongye
Certification
IOS9001
Model Number
Q345B
Highlight:
steel bailey bridge
,bailey bridge components
,bailey bridge Transom clamp
Product Description
Specifications
bailey bridge Transom clamp composed by bars, hang beam and supporting stem to fix the beam.
It comprises three parts as brace, hanging beam and supporting rod, used for fastening transom. On the brace top, there is a raised head, to be put into the nick of the transom pad while installing. One end of the hanging beam catches on the slotted hole of the truss montant, turn the supporting rod with push rod (or wrench) to press upon and fasten the transom. The transom bolt & nut may not bear too much upward load; therefore, while the transom is held by jig, no jacking is allowed to use under the transom.
