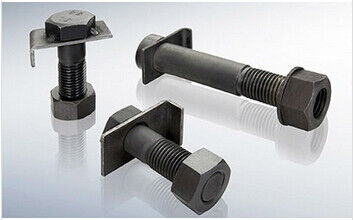

high strength structure bolt
| MOQ: | 1 Unit/Units |
| Price: | US $ 600 - 1,600 / Unit |
| Standard Packaging: | 40ft container |
| Delivery Period: | 15 working days after prepayment |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 2500 Ton/Tons per Year |
Detail Information
Place of Origin
Jiangsu, China (Mainland)
Brand Name
zhongye
Certification
IOS9001
Model Number
Q345B
Highlight:
steel bailey bridge
,bailey bridge components
,high strength structure bolt
Product Description
Specifications
Panel bolt used to connect the upper and lower panel.
Truss bolt & chord member bolt : truss bolt is used for connecting the upper and lower truss. While using, insert the bolt into the hole of truss chord member bolt from top to bottom, let the bending pad of the bolt seize inside the chord member, and tighten the nut. The chord member bolt, similar to the truss bolt, only 7cm in length, is used for connecting truss and reinforced chord member, installed according to Fig. 3-20, let the screw head bury into the reinforced chord member, avoiding blocking the bridge while pushing out.
