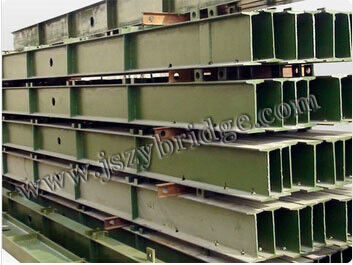

Standard Bailey Bridge transom
| MOQ: | 1 Unit/Units |
| Price: | US $ 600 - 1,600 / Unit |
| Standard Packaging: | 40ft container |
| Delivery Period: | 15 working days after prepayment |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 2500 Ton/Tons per Year |
Detail Information
Place of Origin
Jiangsu, China (Mainland)
Brand Name
zhongye
Certification
IOS9001
Model Number
Q345B
Highlight:
bailey bridge
,steel bridge components
,Standard Bailey Bridge transom
Product Description
Specifications
It is composed by four groups bands, used to limit longitudinal position. It can be divided into overweight and common.
1. To support Bailey decking System
2. Bailey Transom
3 .Made of H600 steel
4. Galvanize to protect the surface
On the transom, there are four groups of clops, for limiting the position of stringer, with short post welded on two ends for connecting raker, and three sockets on the bottom surface of two ends respectively. While installing the transom, put the socket on the bolt onto the transom pad of the lower truss chord member, and position the transom on the truss. The interval of sockets is the same as the truss. After positioning the transom, the interval of truss is relatively fastened.
