BAILEY PANEL
| MOQ: | 30 tons or less |
| Price: | UPON REQUEST |
| Standard Packaging: | BULK |
| Delivery Period: | 15 working days after prepayment |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 10000 tons per month |
Detail Information
Place of Origin
China
Brand Name
zhongye
Certification
ISO9001
Highlight:
bridge
,panel
,ZB200
Product Description

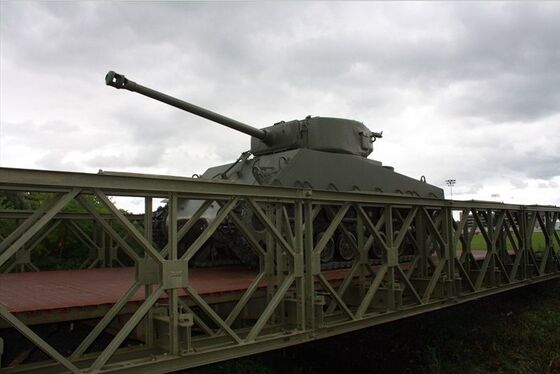

The compact 200 panel bridge: The compact 200 panel bridge is similar to the compact 100 panel bridge from their appearance. The difference is its increased panel height to 2.134m. It adopted the method of alternating joints between Chords Reinforcement and the joints between panels. This method can decrease inelastic deformation caused by the oversized pinholes. Pre-arch method is used to additionally cut down mid-span and vertical deflection to a larger degree. Bolt-connected components use the orienting sleeve- fixing method to increase accuracy of connections. Shear is created in orienting sleeves and tension is developed in bolts, which increase the usage life of the bolts and ensure the safety of panel bridges. Wind resistant brace is made to be composite type and is connected to transom/girders to improve overall stability of panel bridges.
The part between supporting frame and panels is fixed through bridging in order to prevent the whole bridge from side bending. After the erection, there will be a pre-arched degree over the span of the bridge. The compact 200 panel bridge can be assembled into both single and double lane bridge, so it broadens its application range. It is suitable for the load designs of HS-15, HS-20, HS-25 and pedrail-50 etc. any request please feel free to contact Ms.Shannoie Mp:+86 136 5528 0991 ；shannoie at gmail.com.
The part between supporting frame and panels is fixed through bridging in order to prevent the whole bridge from side bending. After the erection, there will be a pre-arched degree over the span of the bridge. The compact 200 panel bridge can be assembled into both single and double lane bridge, so it broadens its application range. It is suitable for the load designs of HS-15, HS-20, HS-25 and pedrail-50 etc. any request please feel free to contact Ms.Shannoie Mp:+86 136 5528 0991 ；shannoie at gmail.com.
