Quick Details
- Standard: ASTM, GB
- Grade: steel
- Dimensions: Q345
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: zhongye
- Type: Heavy
- Application: Steel Structure Bridge
PRODUCTS DETAILS
Products
Contact Us
|
painted bailey bridge,Q355B steel structure bridgecompact 200 bridge
| MOQ: | 1 Set/Sets |
| Price: | 1000-15000USD/pc or negotiable |
| Standard Packaging: | BULK |
| Delivery Period: | 15 working days after prepayment |
| Payment Method: | T/T,L/C, Western Union, |
| Supply Capacity: | 2600 Ton/Tons per Month |
Detail Information
Place of Origin
Zhenjiang
Brand Name
sunrise
Certification
ISO9001,EN
Model Number
ZB321
Website:
Www.jszybridge.ecer.com
Product Description
Packaging & Delivery
| Packaging Details: | by container |
|---|---|
| Delivery Detail: | according to actual needs and after prepayments |
transport steel bridge is similarly like compact 100,compact 200 International bridge.
it is assembled by each 3m panel, and invented by Donald Bailey.

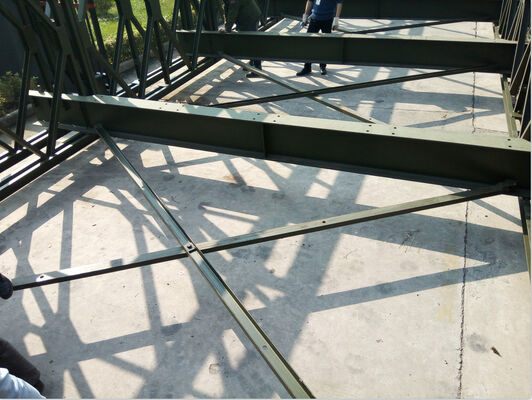

The compact 100 panel bridge can be easily dissembled and rapidly erected. The whole bridge is made by high-tensile strength steel. Main beam is light weight panels and the panels are connected by panel connection pins.
It is easy to assemble or disassemble and transport. It can also be assembled into different forms of panel bridges according to their span length and transportation requirement. So, it has been widely applied as emergency transportation, temprary or permanent bridge.
Its suitable load design is such like HS-15, HS-20, HS-25 and pedrail-50 etc. equivalent.
Portable Steel Bridge can change by 3.048m as a segment to assemble various bridges.The panel is the basic component of Bailey Bridge, with the dimension of 3.048 x 2.134m. The length of bridge can change by 3.048m as a segment to assemble bridges with various spans and loads.
The width of carriageway is 4.2m single lane and 7.35m double lanes.The surface processing is painted or galvanized according to the requirement.
